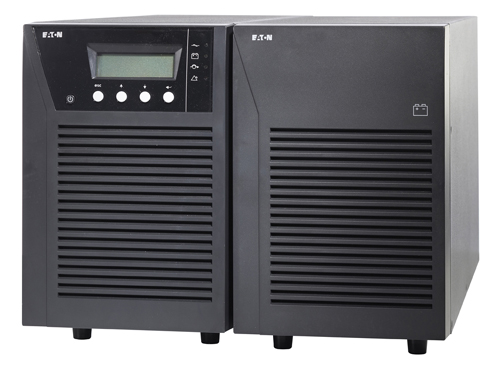

Eaton 9130 Tower UPS
Effcient, reliable and scalable protection for servers, datanetworks and other IT equipment
Eaton 9130 Tower features and benefits
Increased battery life: Eaton offers ABM® technology
that increases battery service life by 50 percent. ABM
uses an advanced, three-stage charging technique and
closely monitors battery health to provide advanced
notice when batteries need replacement.
More power: The 9130 allows you to connect more
devices and leave room for expanding IT systems by
providing up to 28 percent more wattage compared to
traditional UPSs.
Manageability:
• Load segmentation: Grouped outlets with remote
control capability enable IT managers to cycle or shed
loads through a webcard interface or based upon a
preprogrammed schedule.
• Eaton’s Intelligent Power Manager® (IPM): IPM
software provides network power management,
ensuring data and system integrity. With IPM, you can
have access to easy, versatile, remote monitoring and
management of multiple devices.
LCD interface: The bright, intuitive LCD user interface
simplifies UPS monitoring and management. The
user-friendly menu allows you to view all critical UPS
information in a single view.
Low total cost of ownership: The 9130 can help cut
energy usage costs with >95% efficiency rating in high
efficiency mode and can provide more real output power
per each dollar spent with a 0.9 power factor
Intelligent Power Software Suite
By incorporating Eaton’s Intelligent Power Manager
(IPM) software, you get the tools needed to monitor
and manage power equipment in your physical and
virtual environments, keeping IT devices up and running
during a power or environmental event. Best integrated
when combined with the Network Card-MS, IPM
enables you to:
• Ensure system uptime and data integrity by remotely
monitoring, managing and controlling devices on your
network from a web-based interface
• Integrate seamlessly with several virtualization
platforms, such as VMware’s vRealize Operations
Manager and vCenter dashboard, Citrix® XenServer,
Microsoft SCOM, Red Hat® and other Xen® open
source platforms
• Automate load shedding, power capping and failover
to a disaster site
• Achieve the same amount of
runtime with fewer batteries using load shedding
To learn more, please
PW9130G1000T-XL 1000/900 L6-20P2 (1) L6-20R, (2) 6-20R 9.1 x 6.3 x15.0 32.0PW9130G2000T-XL 2000/1800 L6-20P2 (1) L6-20R, (4) 6-20R12.8 x 8.4 x 16.1 76.1PW9130G2000T-XLEU 2000/1800 L6-20P2 (8) C13,(1) C19 12.8 x 8.4 x 16.1 76.1PW9130G3000T-XL 3000/2700 L6-20P2 (1)L6-30R, (1) L6-20R, (2) 6-20R 12.8 x 8.4 x 16.176.1PW9130G3000T-XLEU3000/2700 L6-20P2 (8) C13, (1) C19 12.8 x 8.4x 16.1 76.1
