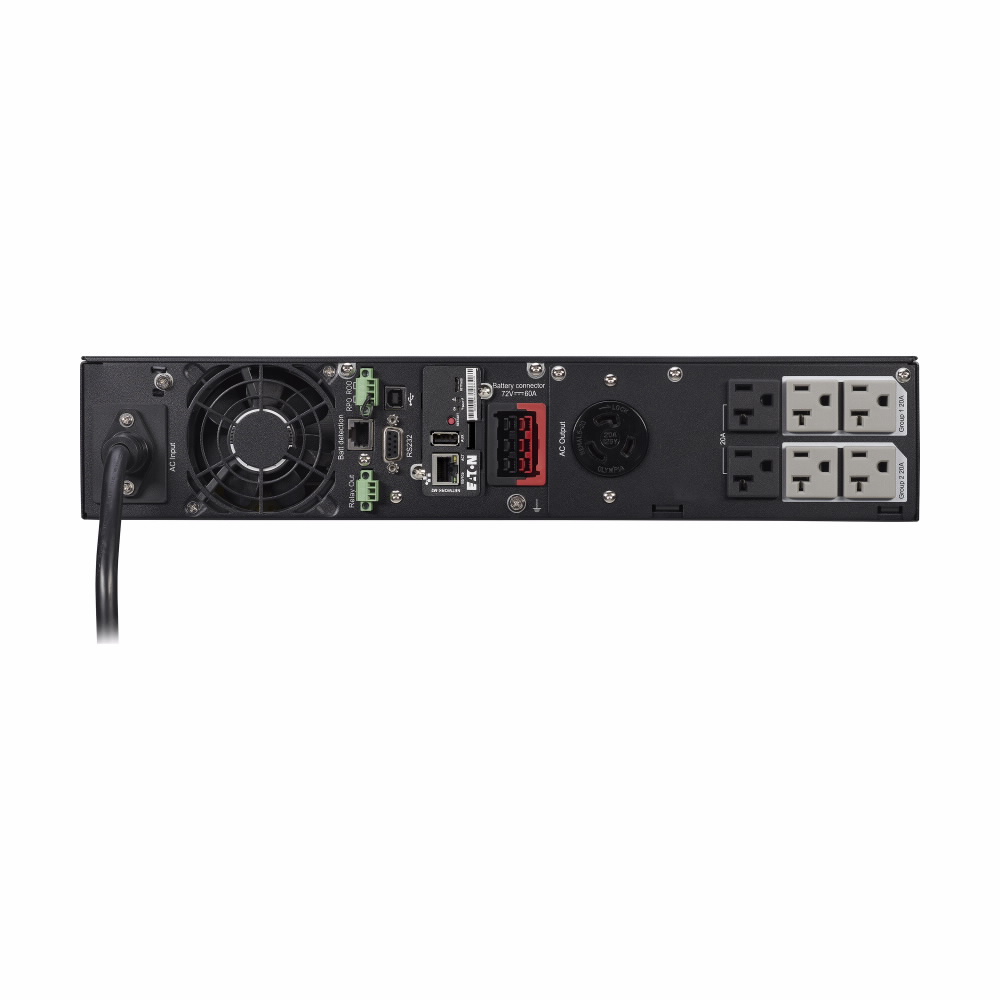

5PX2000RTNG2 Eaton5PX G2 UPS, 2U, 1950 VA, 1950 W, 5-20P input, Outputs: (1) L5-20R,(6) 5-20R, 120V, Network card
GENERAL SPECIFICATIONS
PRODUCT NAME
Eaton 5PX G2 UPS
CATALOG NUMBER
5PX2000RTNG2
UPC
743172105783
PRODUCT LENGTH/DEPTH
23.7 in
PRODUCT HEIGHT
3.4 in
PRODUCT WIDTH
17.2 in
PRODUCT WEIGHT
65.3 lb
WARRANTY
3 year on electronics, 3 year on batteries with registration
COMPLIANCES
CE Marked
REACH
CERTIFICATIONS
CULus
RoHS
NOM
ENERGY STAR certified
IEC 62040-1
BATTERY
RUNTIME GRAPH
View runtime graph
BATTERY REPLACEMENT
User replaceable
BATTERY MANAGEMENT
ABM technology (3-stage charging extends battery service life by50% and provides advance warning for battery replacement)
EXTENDED BATTERY CAPABILITY
Add up to 4 extended battery modules (EBM). Part number5PXEBM72RTG2
ELECTRICAL OUTPUT
BATTERY TYPE
Sealed, lead-acid
RECEPTACLE
(1) L5-20R, (6) 5-20R
WATTAGE
1950 W
TOPOLOGY
Line-interactive
VA RATING
1950 VA
ELECTRICAL INPUT
INPUT CONNECTION
5-20P
INPUT NOMINAL VOLTAGE
120V
NOMINAL FREQUENCY
50/60 Hz
INPUT POWER FACTOR
1
INPUT CORD LENGTH
10 ft
COMMUNICATIONS
USER INTERFACE
LCD graphical display
EXPANSION SLOTS
One slot, Gigabit Network Card (NETWORK-M2) is included
SOFTWARE COMPATIBILITY
Brightlayer Data Centers suite
